System information

Function

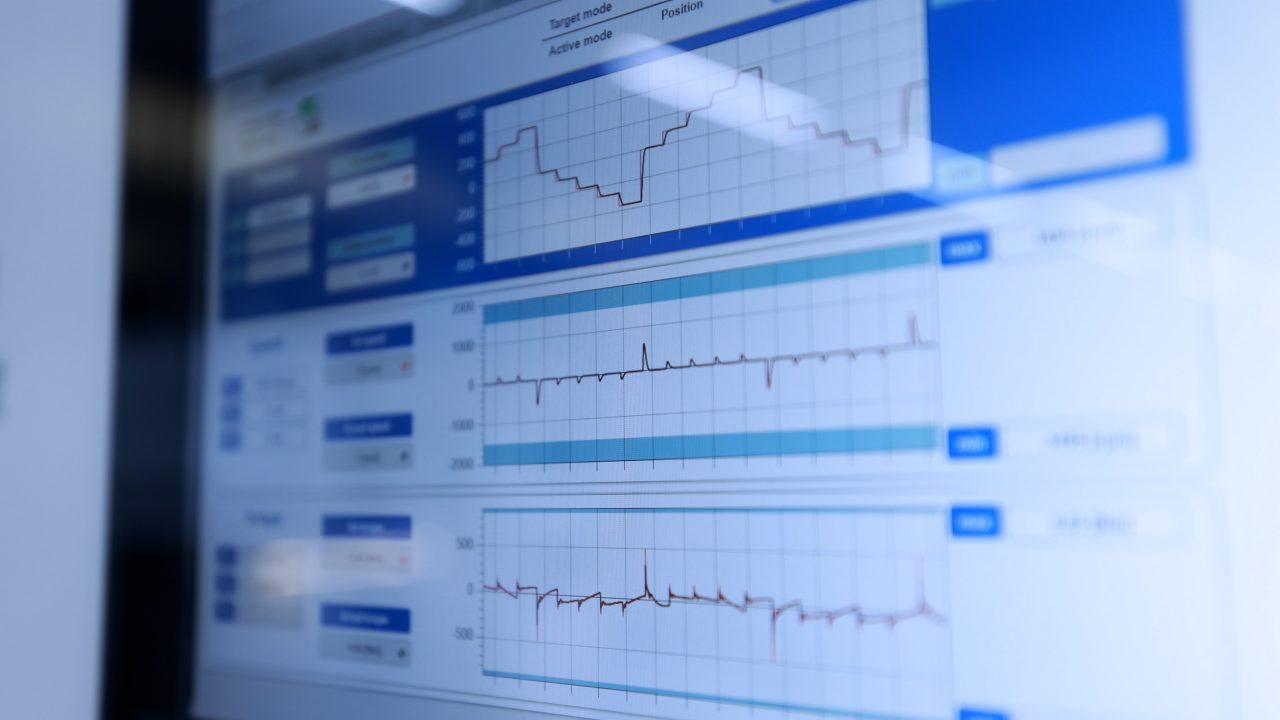

BLDC (Brushless direct current) drive with integrated multiturn encoder for absolute position detection. Including integrated motor controller with cascaded control structure for torque, speed and position control. Activation is carried out using certified interfaces, such as Ethernet/IP, Profinet or Powerlink. Customer-friendly configuration to the appropriate application can be carried out in the web-based management.

Area of use

Can be used in industry for position, speed and torque control

Application

The BLDC drives are designed for flange mounting. Optionally, gear variants, including an emergency stop brake, are available.

Request available downloads

We will immediately send you all available documents for the components and systems.

*Required field

Drive units

Rotary drive unit EL.MOTION AD 11

BLDC drive for a nominal torque of 1 Nm and a nominal speed of 1,000 rpm

More info

Rotary drive unit EL.MOTION AD 12

BLDC drive for a nominal torque of 2.4 Nm and a nominal speed of 350 rpm

More info

Linear drive unit EL.MOTION AG 91

Linear actuating drive with wear-free, brushless drive technology with a maximum actuating force of 1000 N

More info

Linear drive unit EL.MOTION AG 93

Linear actuating drive with wear-free, brushless drive technology with a maximum actuating force of 3000 N

More info
