Today, the manufacturers and users of machines for processing web-type materials are confronted with ever increasing demands: production processes should be even faster, while at the same time performed with greater precision, the quality of the finished product further improved while personnel, waste and, above all, downtimes, should be reduced to a minimum. A decisive contribution to the fulfillment of these prerequisites is made by web tension control systems by Erhardt+Leimer.

The ELTENS load cells

ELTENS is Erhardt+Leimer’s comprehensive web tension monitoring and control system. We offer a wide range of load cells for different applications and production requirements. Combined with many options for amplifying and controlling units, you get a full service package that solves all your web tension problems and improves production quality and quantity.

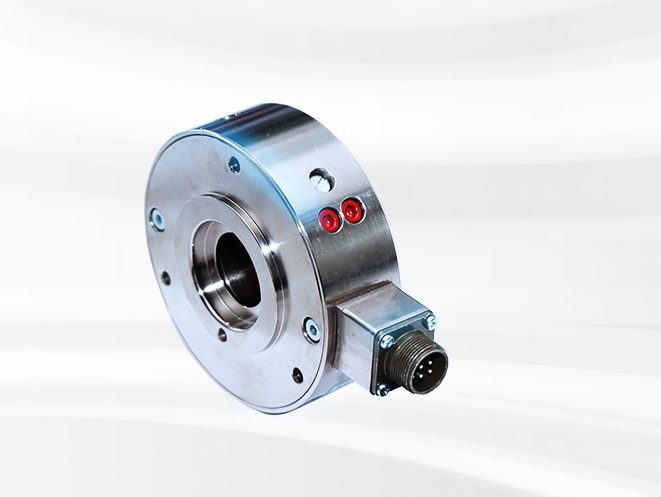

PD 21/22

  • 0.05 - 10 kN
  • broad web
  • steel
  • one & both sides
  • for all applications

PD 23/24

  • 0.1 - 3 kN
  • broad web
  • stainless steel
  • one & both sides
  • wet environment

PD 25/26

  • 0.1 - 1.5 kN
  • broad web
  • aluminium
  • one & both sides
  • for battery industry

PD 27

  • 60 kN
  • narrow web
  • steel
  • one side
  • single side mount

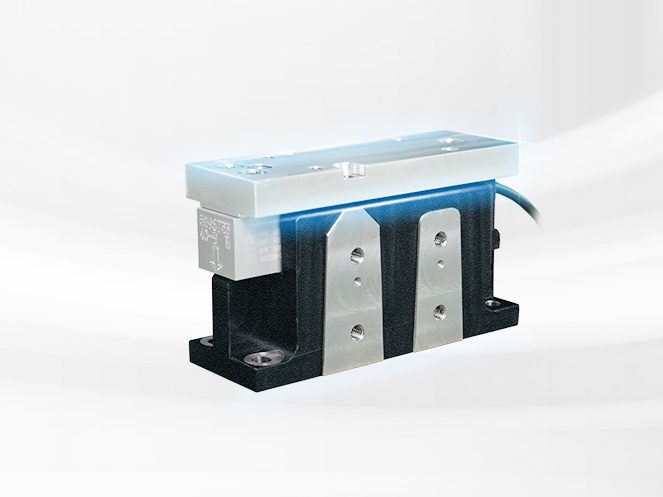

PD 50

  • 0.08 - 2.0kN
  • broad web
  • aluminium
  • one & both sides
  • easy roller mounting


PD 21/22

PD 23/24

PD 25/26

PD 27

PD 50

Nominal measuring force

0.05 - 10 kN

0.1 - 3 kN0.1 - 1.5 kN60 kN0.08 - 2.0 kN
Web width

wide web

wide webwide webnarrow webwide web
Material

steel

stainless steelaluminiumsteelaluminium
Bore type

one & both sides

one & both sidesone & both sidesone sideone & both sides
Application

for all applications

wet environmentbattery industrysingle-side mounteasy roller mounting





More InformationMore InformationMore InformationMore InformationMore Information

Find even more Erhardt+Leimer web tension products here:

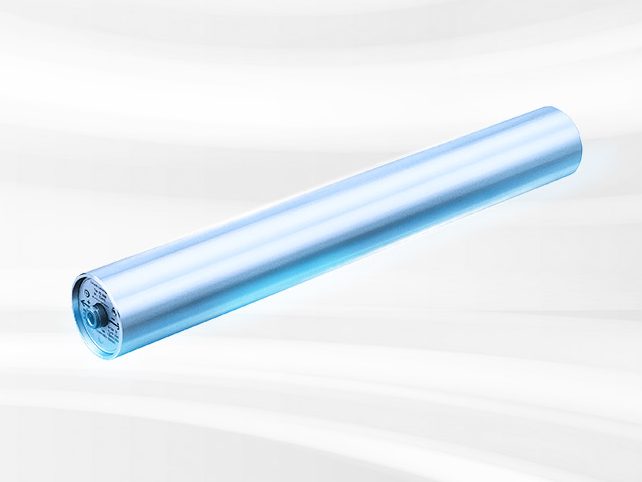

Sensor roller PD 30

Aluminum roller with two integrated load cells and a roller diameter from 80 to 200 mm

More info

Sensor roller PD 40

Aluminum roller with two integrated load cells and a roller diameter from 60 to 120 mm

More info

Analog measuring amplifier CV 22

Single-channel measuring amplifier for connecting two fabric tension sensors to a strain gauge bridge

More info

Digital measuring amplifier with display PA 62

Digital two-channel measuring amplifier for connection of 2 fabric tension sensors with a strain gauge bridge

More info

Web tension controller DC 62

Compact, digital web tension controller for different control structures including color touch-display

More info

Quick expert info & contact

Request download

Salutation
*Required field

Write to us! We are looking forward to your message.

Salutation
*Required field

Controlled web tension is essential

Typically, web-type materials are fed from a roll to the machine, finished and then rewound. At each stage, web tension errors may occur that may lead to malfunctions and quality impairments. The elimination of these sources of error and ensuring a constant web tension during the production process is the task of E+L web tension control systems. Depending on the material type, application and task, Erhardt+Leimer offers a variety of systems with the latest technology: For decisively more quality and productivity that pays off.

Web tension after the unwinder

  • Insufficient web tension causes slack in front of the transport drive
  • If the web tension is too high, longitudinal creasing and textile web deformation may be caused

Web tension on the rewinder

  • If web tension on rewinding is insufficient, roll telescoping may occur
  • Excessively high tensile forces damage the inner windings

The solution: a continuous control loop

Any automation of a controller is based on the principle of a simple control loop. Even the most complex of tasks may be reduced to this control loop.

"As the market leader in automation and quality management, we know that precise web tension in the production process is the key to your product quality. Accuracy, reliable measuring equipment and state-of-the-art technology are the guarantees of success that all Erhardt+Leimer customers can count on."



Dirk Schröder

Sales Operations Manager ELA
Sales Division Manager
Paper / Film / Special Markets

The perfect ELTENS package for your application

Bundle 1

  • Anwendung
  • Details
  • etc.

Bundle 2

  • Anwendung
  • Details
  • etc.

Bundle 3

  • Anwendung
  • Details
  • etc.

Bundle 4

  • Anwendung
  • Details
  • etc.

The ELTENS calculator

Depending on the respective requirements and conditions of your starting material, ELTENS offers a wide range of systems and solutions for web tension measurement and control. The resulting web forces can be calculated quickly and easily using our free calculator.
