Information about the corrugated board systems

Among other things, efficient production with a corrugator places particular demands on web guiding, web tension control as well as the reliable configuration, control and checking of important production parameters. Erhardt+Leimer offers everything from a single source.

Our tried-and-trusted systems for the corrugator support you in the automation of the production process and quality assurance, helping to reduce waste. Meanwhile, our products work together to ensure significant cost savings and greater efficiency

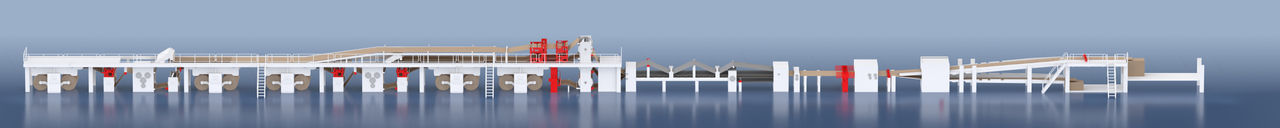

Systems and products for corrugators

Pivoting frame system ELTrac

Automatic guiding system for medium and liner

More info

Bridge web guiding system CorrAligner

Automatic alignment of one-sided webs at the laminating point in the double backer

More info

Pivoting frame system SplitWeb

SplitWeb double web guiding system for joining together two narrow webs in the direction of machine operation into a covering web with a constant width

More info

Positioning and follow-up control TrimMaster

Automatic and continuous positioning of the automatic slitter/scorer

More info

Bridge braking system TensionMaster

Automatic web tension monitoring for the single-sided webs

More info

ELCorruMatic CSM / WPA splice management

This ensures optimum productivity of the corrugated board line and delivers the highest possible speed for the double backer for the product

More info

ELCorruMatic RSM / management system for the roll stock

System for recording the consumed running meters of a particular order

More info

ELCorruMatic WarpMeter / analysis of sheet quality

System for measuring and logging the flatness of produced corrugated board sheets

More info

Automation of work order changes SmartLine CORR

Automation of work order changes when using pre-printed rolls for the corrugator

More info

Compensating roller ELCorr

Self-regulating compensating roller ensures symmetrical web tension distribution across the entire web width

More info

Web cleaning system ELClean

Contactless web cleaning system for corrugated board production

More info
