Correction frame

Optimal fabric preparation for downstream production processes

Information about the correction frame

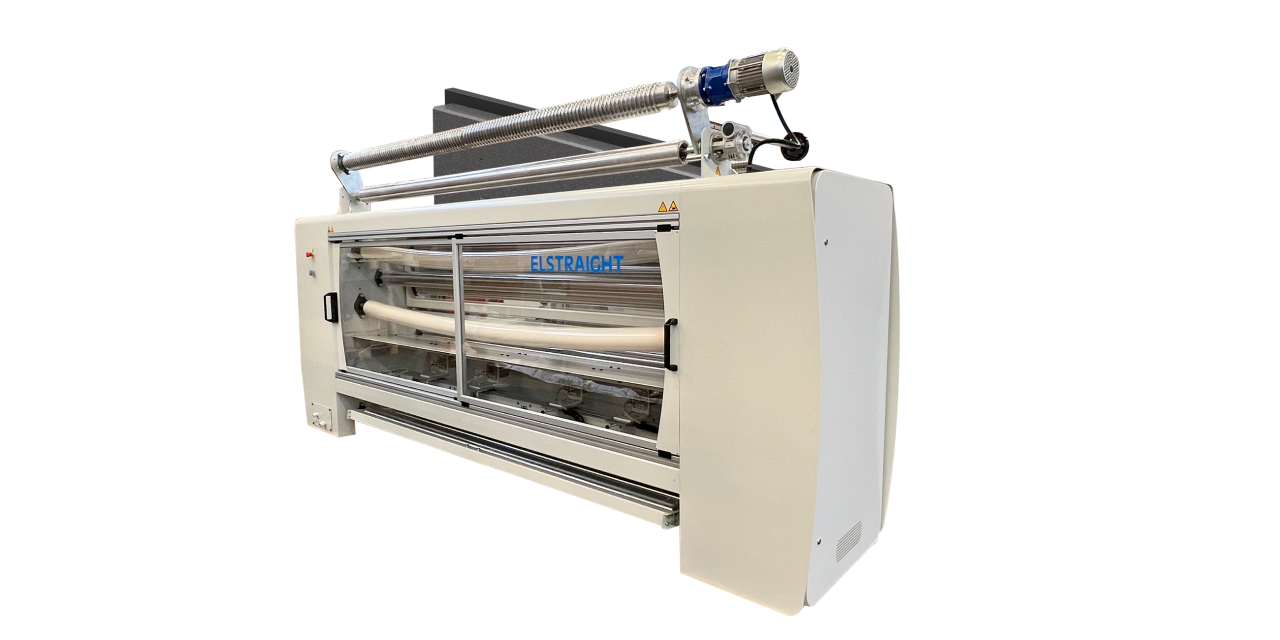

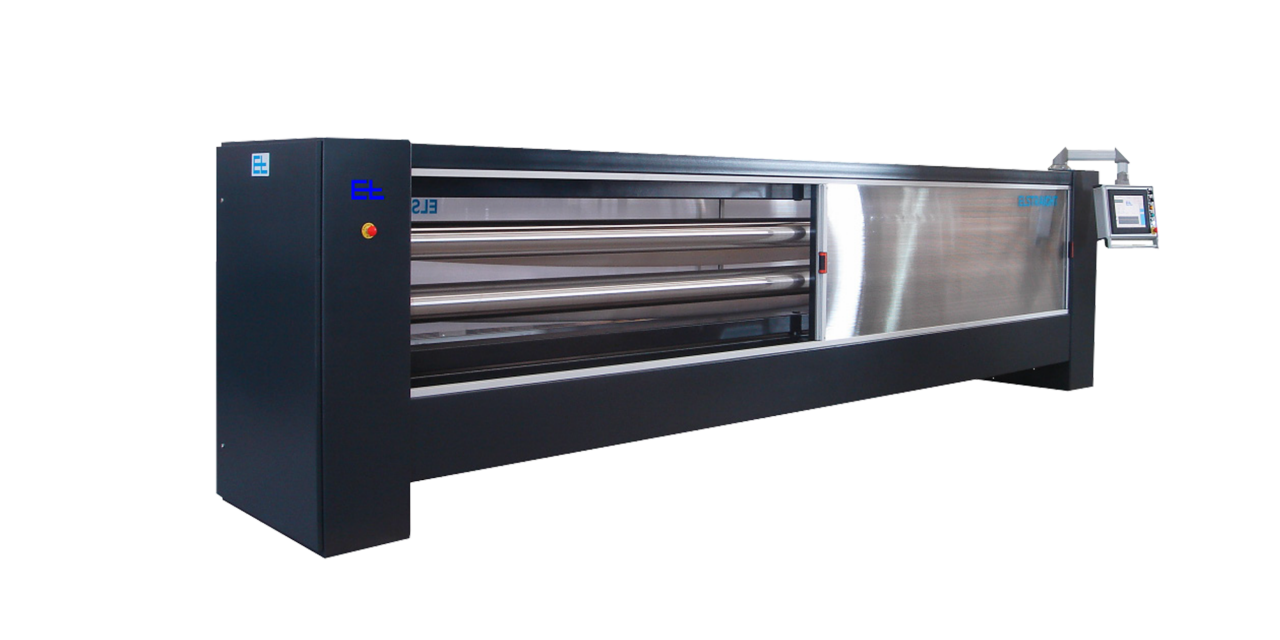

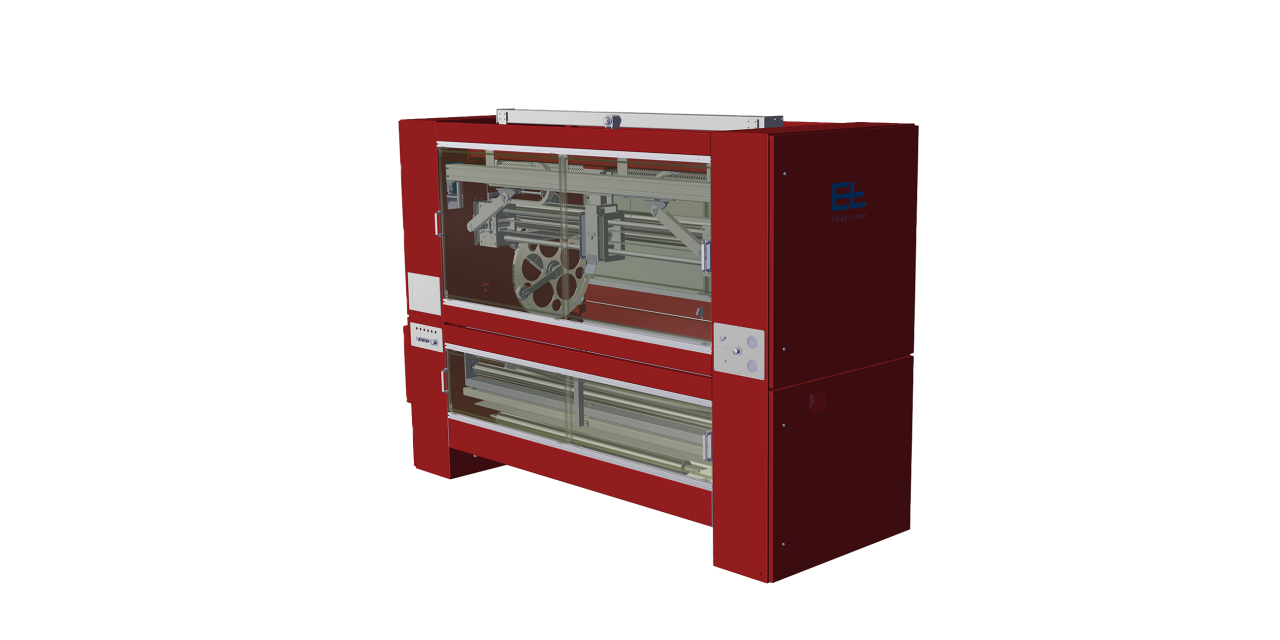

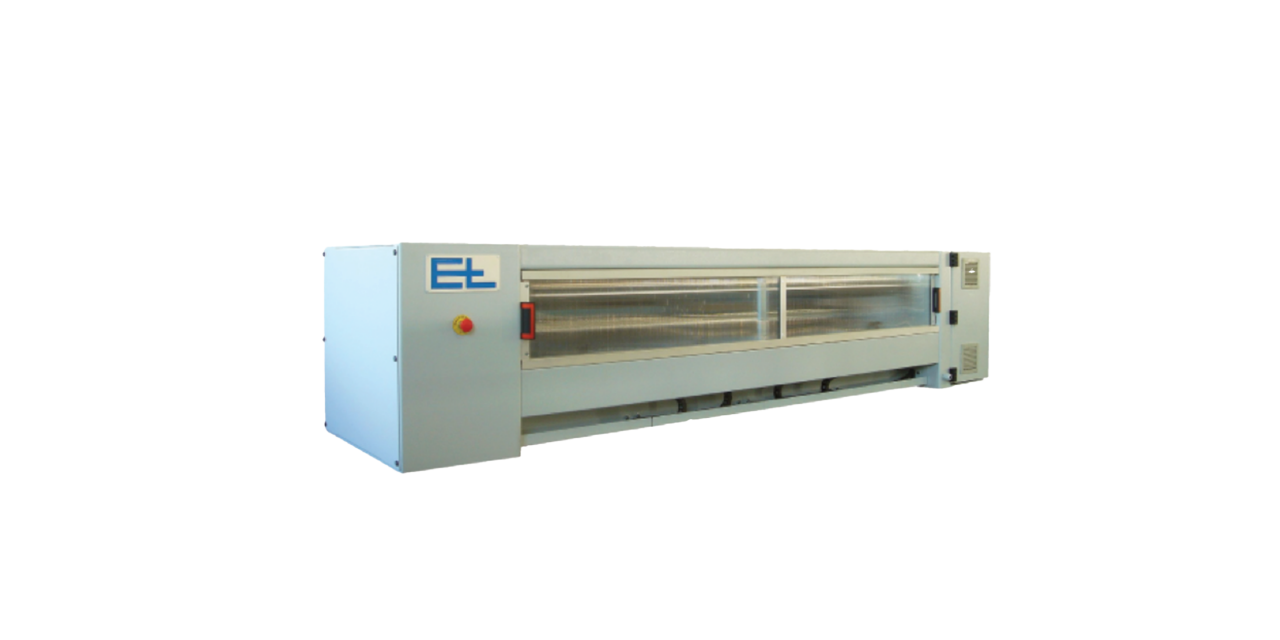

A correction frame is used during the preparation of production runs for printing and dyeing. Here the required production runs are assembled in the correct web width. A weft straightener and also a dedusting system can be installed before the correction machine. In this way, the fabric can be optimally prepared for further processing.

Systems and products for correction frames

Stenter infeed KRS60

Precise web selvedge pinning through dynamic control and CCD infrared sensor

More info

Web guiding and spreading system ELSMART SWA95

Precise web guiding for woven and knitted fabrics in dry and damp operation at a machine speed of up to 130 m/min with pneumatic actuating drive

More info

Web guider KF 2020

Web guider with mechanical edge detection and pneumatic operation

More info

Web guider KF 2040

Web guider with mechanical edge detection and electric operation

More info

Web guider KF 2060

Web guider with optoelectronic edge detection and electric operation

More info

Flange load cell, steel PD 21/22

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info

Flange load cell, aluminum PD 25/26

Cost-effective flange load cell made of aluminum with an anodized surface

More info
