Information about the assembling machine

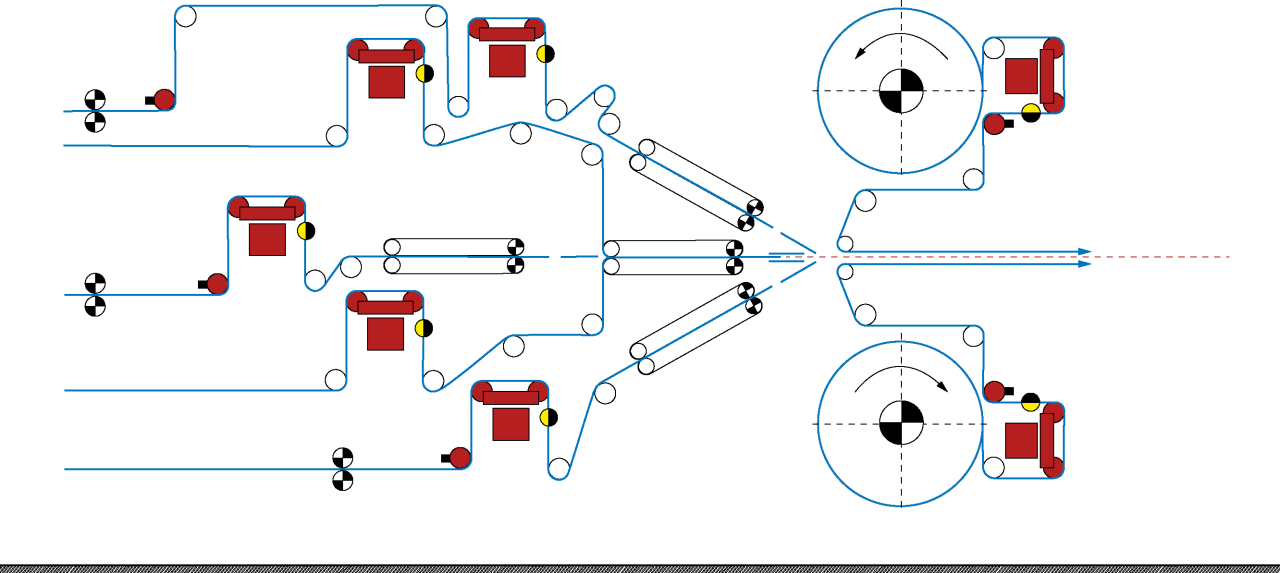

Assembling and laminating systems combine copper foils, aluminum foils and separator films. Here, E+L web guiding and web tension control systems can provide support with the highest level of accuracy and guarantee consistent high quality during the assembly of the cell.

Systems and products for assembling machines

Web guiding system ELGUIDER DRB14

Extremely compact web guiding system with brushless drive technology including integrated operating and control technology for a nominal width of 160 to 450 mm and a maximum web tension of 300 N

More info

Web guiding system ELGUIDER DRB25

Extremely compact web guiding system with brushless drive technology including integrated operating and control technology for a nominal width of 400 to 1,100 mm and a maximum web tension of 700 N

More info

Sensor roller PD 40

Aluminum roller with two integrated load cells and a roller diameter from 60 to 120 mm

More info
