Information about the die cutter

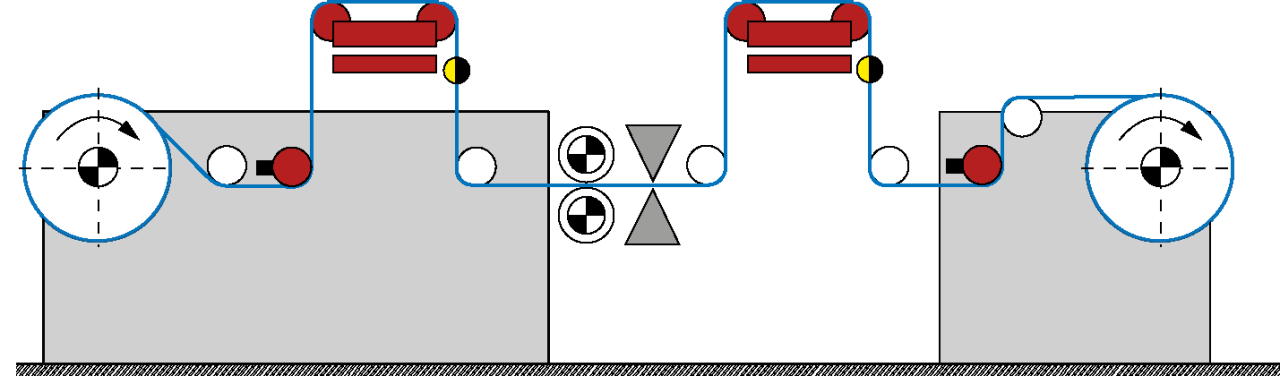

During notching, the contact connections are punched out of the coated aluminum or copper strips. This process can be undertaken mechanically or using lasers. During this step, it is important that the strip is fed to the punching tool according to the guiding criterion.

Systems and products for slitter rewinders

Web guiding system ELGUIDER DRB14

Extremely compact web guiding system with brushless drive technology including integrated operating and control technology for a nominal width of 160 to 450 mm and a maximum web tension of 300 N

More info

Web guiding system ELGUIDER DRB25

Extremely compact web guiding system with brushless drive technology including integrated operating and control technology for a nominal width of 400 to 1,100 mm and a maximum web tension of 700 N

More info

Flange load cell, steel PD 21/22

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info

Flange load cell, aluminum PD 25/26

Cost-effective flange load cell made of aluminum with an anodized surface

More info

Sensor roller PD 40

Aluminum roller with two integrated load cells and a roller diameter from 60 to 120 mm

More info

Block load cell PD 50

Large measuring range thanks to the resolution of 1:25

More info
