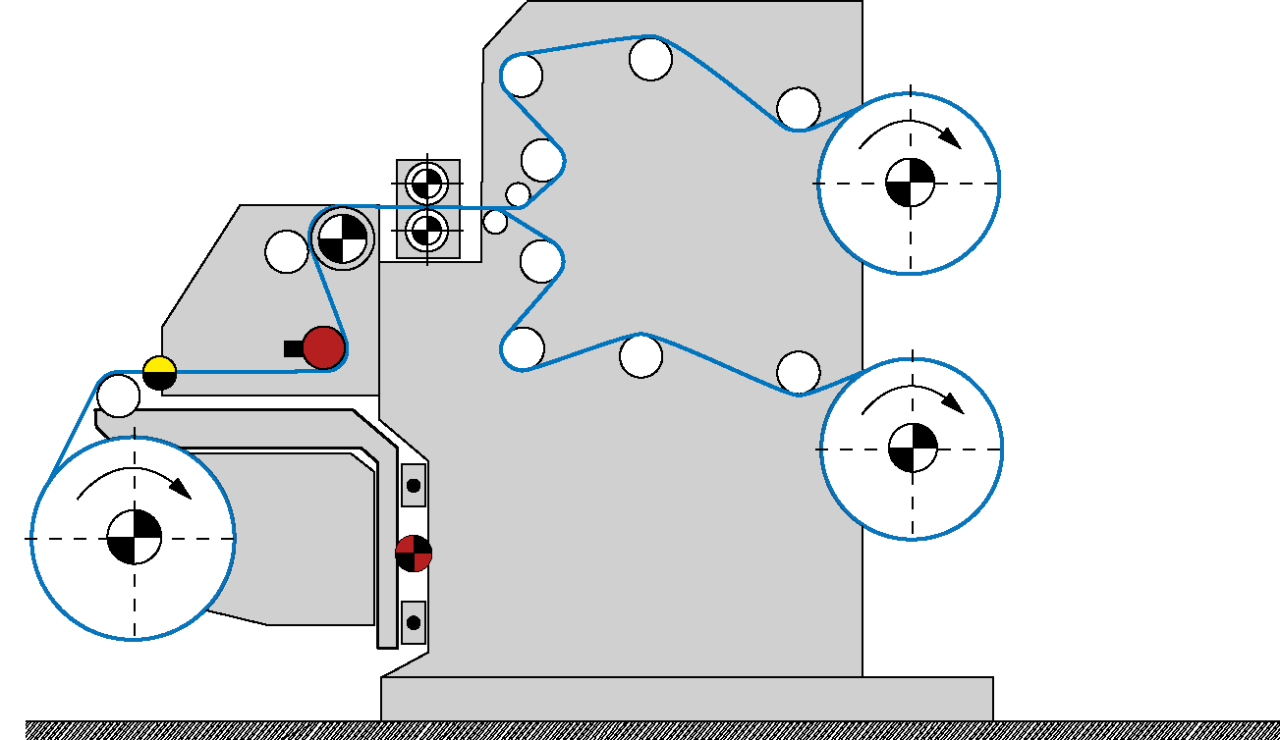

Information about the slitter rewinder

Cutting is a separation operation in which a wide electrode strip (mother coil) is divided up into multiple webs. The cutting operation can be thermal using laser cutting or mechanical using rotating blades. With both cutting technologies it is important that the edge of the web is guided exactly into the cutting station. Besides the web position, constant web tension is crucial for consistent quality.

Systems and products for slitter rewinders

Winding station system WSB91/93

Control components for winding stations with wear-free, brushless drive technology with an actuating force of 1,000 or 3,000 N

More info

Flange load cell, steel PD 21/22

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info

Flange load cell, aluminum PD 25/26

Cost-effective flange load cell made of aluminum with an anodized surface

More info

Block load cell PD 50

Large measuring range thanks to the resolution of 1:25

More info
