System information

Function

On a conveyor belt control system, the web changes direction four times, each time by 90°. A pivoting conveyor belt forms the basis here. Its pivot point is located on the infeed plane. Lateral web corrections can only be achieved by pivoting around this pivot point.

Area of use

Wherever rubber webs are transported on belts, these belts can also be used for web guiding.

Application

Care must be taken to ensure both the incoming and outgoing rubber web enter and exit at an angle of 90° to the conveyor belt. The infeed and exit path should be the equivalent of at least 50 percent of the maximum web width. The sensor must detect the rubber web as closely to the exit point from the conveyor belt as possible.

Conveyor Belt Control

Legend

K = Web correction | α = Angle of cut edge | AB = Operating width | BB = Belt width | NB = Nominal width | LÜ = Transfer length | L1 = Infeed path | L2 = Exit path | 1 = Pivot point | 2 = Infeed conveyor belt | 3 = Conveyor belt | 4 = Sensor | 5 = Fixing conveyor belt

Options

Conveyor Belt Control

Option 1                                                                            Option 2

Operation in split mode: sidewall control                        Operation in coupled mode: inner liner control

Conveyor belt control system

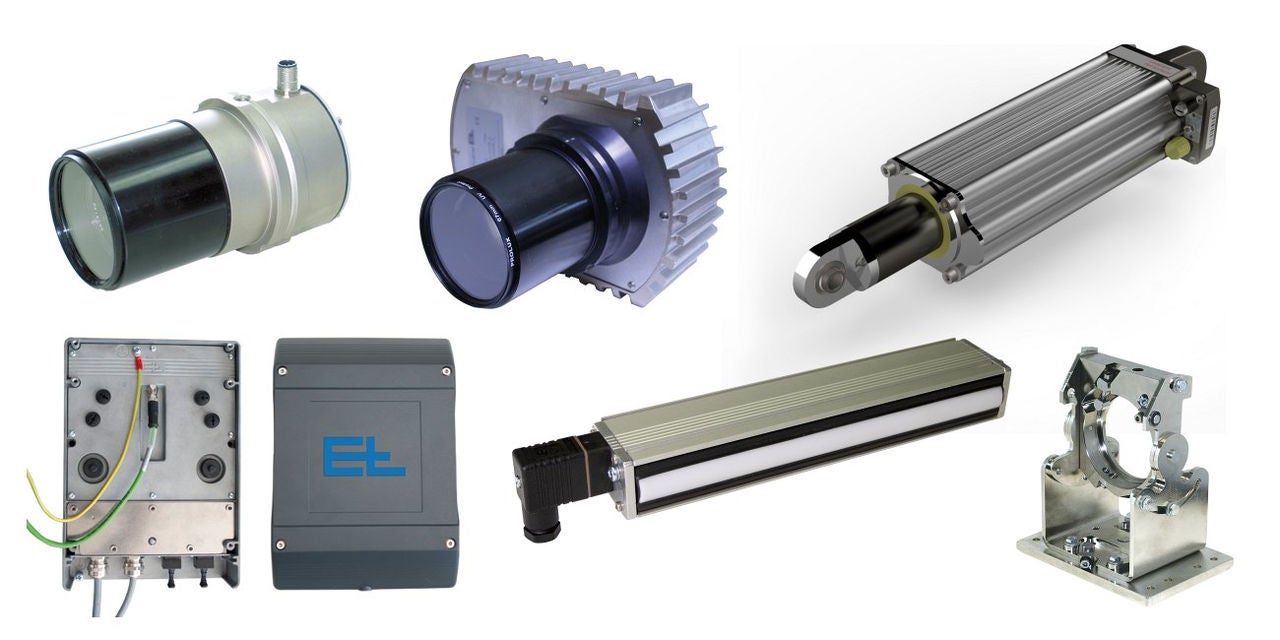

Positioning control components for conveyor belt positioning

Positioning control components for belt strip positioning (steel cord) including peak correction

More info

System components

Infrared wide band sensor FE 46

Digital infrared wide band sensor for web center detection, web edge detection, and width measurement with a tube distance (clear width) of 160 mm

More info

CCD camera OL 82

Interruption-free detection of web edges, position detection, web guiding, material detection, and width measurement

More info

Infrared edge sensor PoE FR 54

Infrared edge sensor based on the principle of retroreflection with a measuring range of ±10 mm and a resolution of 0.02 mm

More info

CCD camera OL 91

Used to detect various criteria for position control on moving webs with complete image processing within the camera

More info

CCD camera OL 82

Interruption-free detection of web edges, position detection, web guiding, material detection, and width measurement

More info

CCD camera OL 91

Used to detect various criteria for position control on moving webs with complete image processing within the camera

More info

Data network center DN 10

E+L computer for customer-specific software, acts among other things as a link between the customer's user hardware and the E+L system network.

More info

Camera computer DO 82

Powerful camera computer for up to two cameras and different applications in customer-specific applications.

More info

Command station OP 36

Cost-effective operating panel (touchpanel) for the visualization and operation of customer-specific applications for web guiding and web tension control tasks.

More info

Actuating drive AG 90

Linear actuating drive with wear-free, brushless drive technology with a maximum actuating force of 800 N

More info

Linear drive unit EL.MOTION AG 93

Linear actuating drive with wear-free, brushless drive technology with a maximum actuating force of 3000 N

More info
