Information about the steel cord cutting line

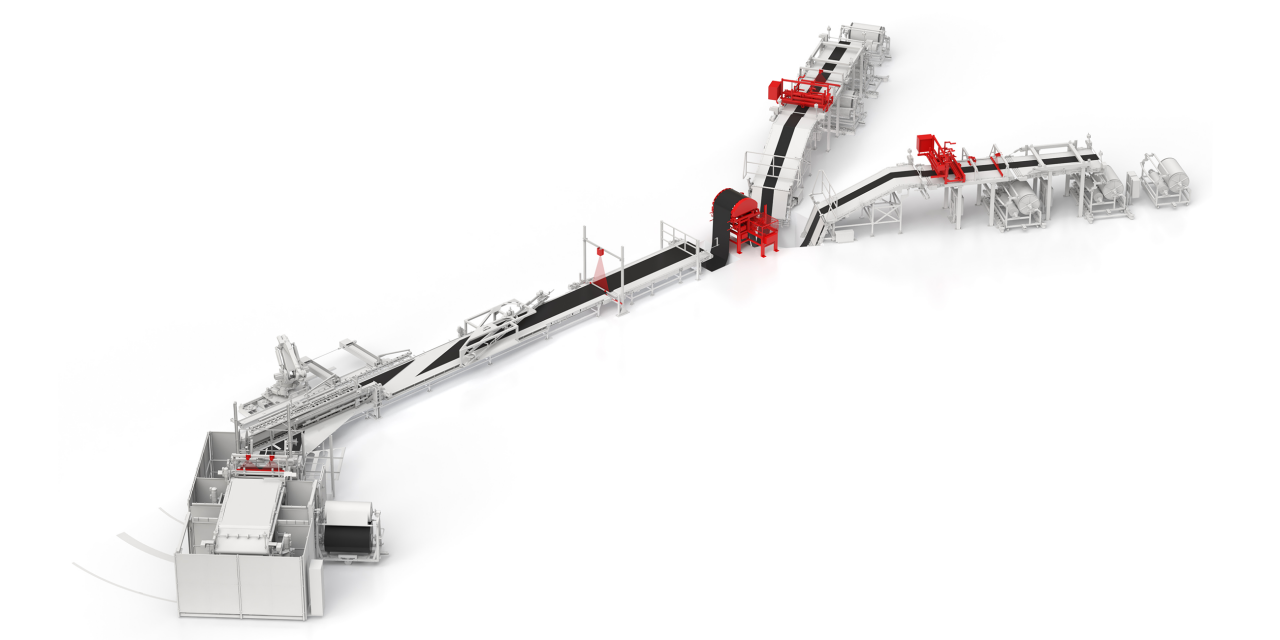

On steel cord cutting lines, the material manufactured previously on the calender is cut at a defined angle and joined together again to provide maximum stability in the finished tire. E+L supplies all the components to keep the webs in position and to laminate them with other materials, as well as measuring systems for monitoring the width or splices. In this way, the highest quality demands are met.

Systems and products for steel cord cutting lines

Winding station system WSB91/93

Control components for winding stations with wear-free, brushless drive technology with an actuating force of 1,000 or 3,000 N

More info

Steering roller system ELROLLER SRB43

Compact steering roller system for nominal widths of 400 to 2,400 mm and a maximum web tension of 700 N

More info

Web guiding system with roller basket ELGUIDER DRB73

Web guiding system in frame design with roller basket for positioning of steel cord out of the loop in steel cord cutting systems

More info

Complexer laminating station

Laminating station for precise laminating of rubber strips

More info

CCD camera OL 82

Interruption-free detection of web edges, position detection, web guiding, material detection, and width measurement

More info

CCD camera OL 91

Used to detect various criteria for position control on moving webs with complete image processing within the camera

More info
