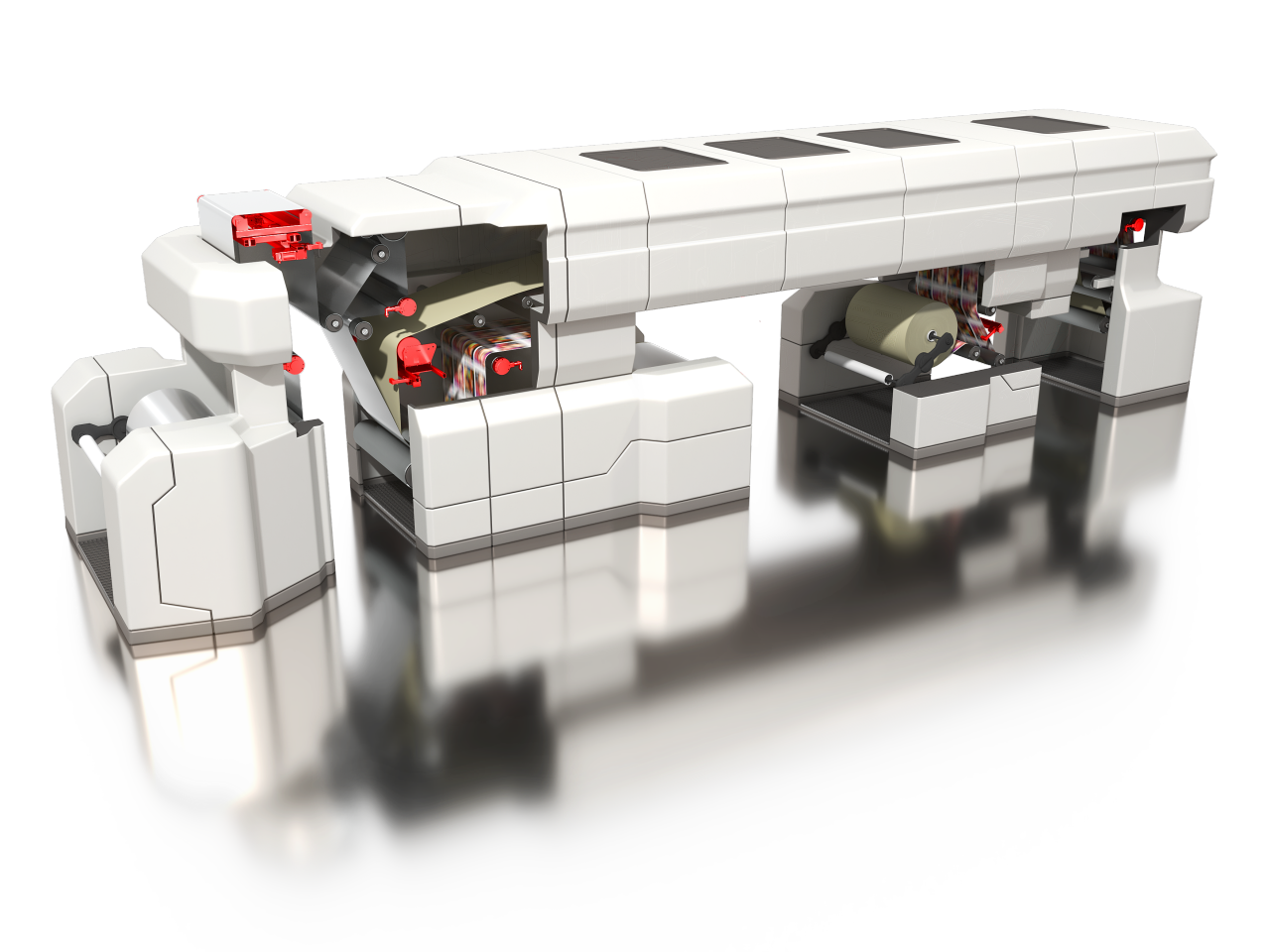

Information about the coating line

Besides handling different web tensions, matched networking of the systems is a primary success factor. We offer tried-and-trusted solutions from web tension control, through networked web guiding, to high-performance interfaces. Our components feature high durability and a long service life, and they are perfectly suited to use in the harsh conditions (temperature, soiling) on a coating line.

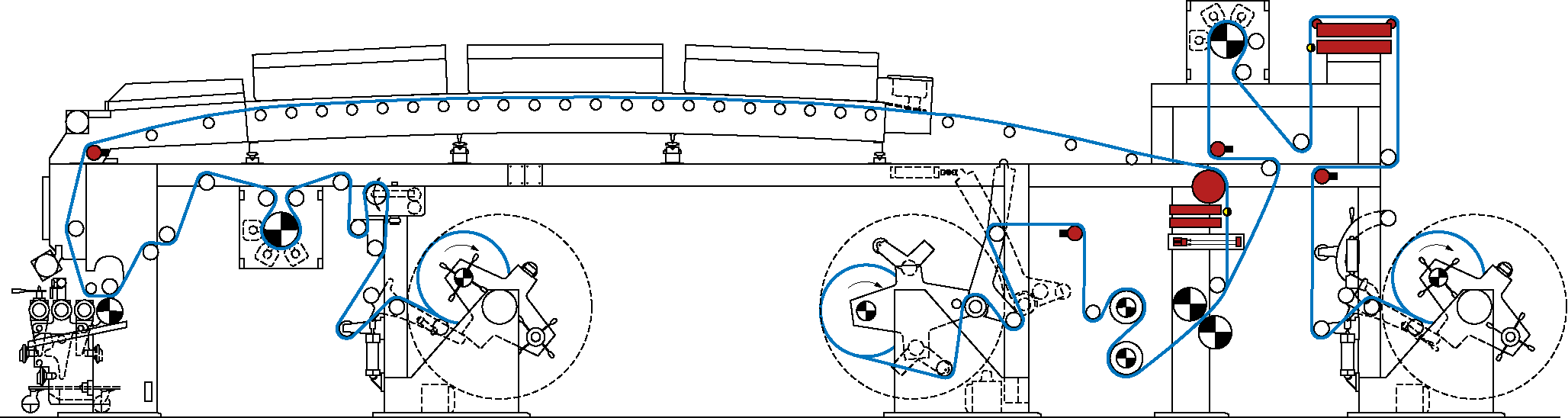

Systems and products for coating line

Basis weight measuring system ELTIM BWS10

Traversing, contact-free basis weight and thickness measurement for the foil and battery industry

More info

Steering roller system ELROLLER SRB43

Compact steering roller system for nominal widths of 400 to 2,400 mm and a maximum web tension of 700 N

More info

Schiebewalzensystem ELROLLER SRB53

Kompaktes Schiebewalzensystem für Nennbreiten von 1100 bis 4000 mm und eine maximale Bahnkraft von 2000 N

More info

Web guiding system ELGUIDER DRB33

Web guiding system in frame design with wear-free, brushless drive technology for a nominal width of 400 to 3800 mm and a maximum web tension of 700 N

More info

Flange load cell, steel PD 21/22

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info

Flange load cell, aluminum PD 25/26

Cost-effective flange load cell made of aluminum with an anodized surface

More info

Block load cell PD 50

Large measuring range thanks to the resolution of 1:25

More info
