Information about the textile coating system

Coatings are used to give textiles special characteristics, e.g. water-repellant or good hygroscopic properties. Waste is a high cost factor in coating and laminating systems. Precise web guiding is essential here. If webs with varying elasticity are coated, then only web tension control can guarantee a reproducible result. You can find all the necessary additional components in our product range, through to basis weight and application measurement.

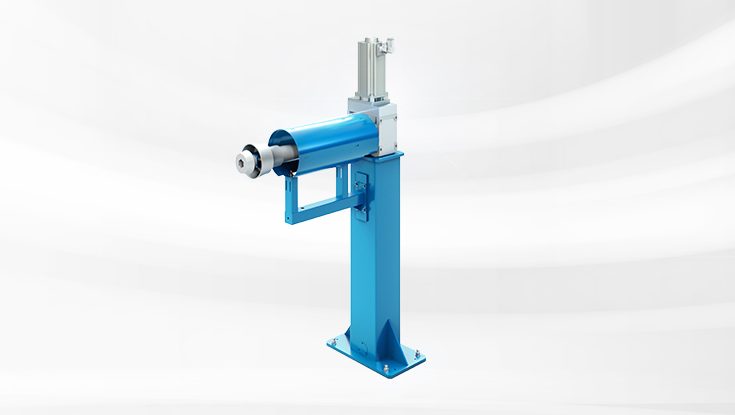

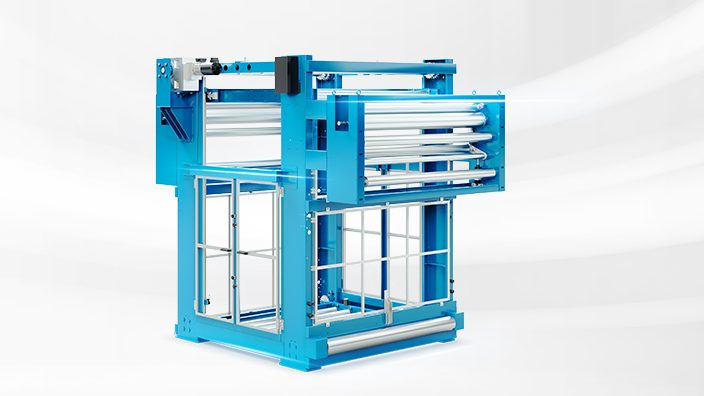

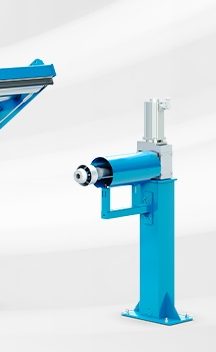

As part of our machine range, we can also offer program-controlled systems with unwinders and rewinders with web tension-controlled roller accumulators. When changing products, the system is prepared automatically with all the process parameters for the next production start without losing any time.

Systems and products for textile coating systems

Web guiding and spreading system ELSMART SWS95

Precise web guiding for woven and knitted fabrics in dry and damp operation at a machine speed of up to 220 m/min with electric actuating drive

More info

Web guiding system ELGUIDER DRB33

Web guiding system in frame design with wear-free, brushless drive technology for a nominal width of 400 to 3800 mm and a maximum web tension of 700 N

More info

Flange load cell, steel PD 21/22

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info

Flange load cell, aluminum PD 25/26

Cost-effective flange load cell made of aluminum with an anodized surface

More info

Web cutting system ELCUT BTB01

Shear cut principle with driven bottom and top blades for edge cuts on paper, foil, textile, carpet, non-woven fabric, and felt webs

More info
