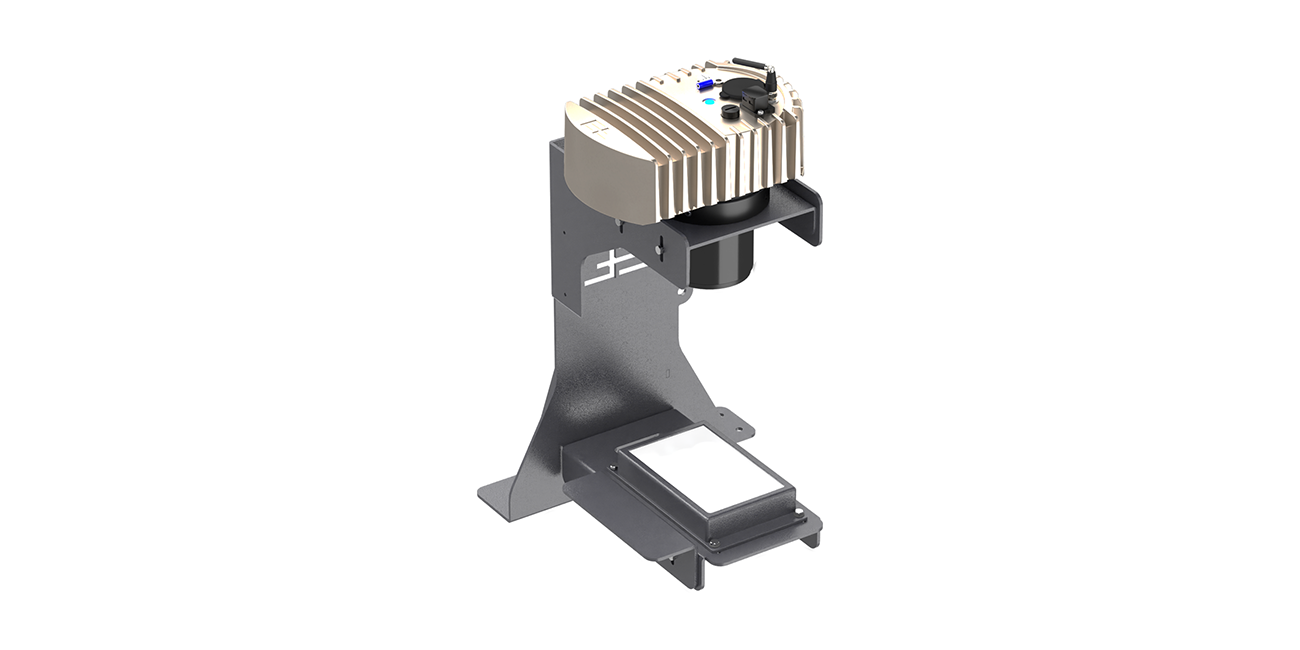

Warp thread sensor ELWARP SI 2001
-
- /content/dam/erhardtandleimergmbhprogram/products---spare-parts/product-types/sensors---cameras/edge-sensor/SI 2001 neu.png
- Description
- Technical Data
- A unique sensor in the market for optical detection of the outermost warp thread, regardless of the length of protruding weft threads
- New approaches based on artifi cial intelligence and use of state-of-the-art technology allow detection of the outermost warp thread for the fi rst time at the level of human perception
- For clear, unambiguous detection of the outermost warp thread in the downstream cutting process, it is necessary to bring the protruding weft threads into the same plane. This can be done with a mechanical or pneumatic spreader
- Integrated WLAN card for reliable communication with mobile terminal devices such as smartphones or tablets
- E+L app for Android and iOS so that – if required – model optimizations can be uploaded to the sensor
- Remote access using TeamViewer via RJ45 Ethernet interface and external computer (for service use only)
- HDMI and USB connection for monitor and mouse (for service use only)
| Technical data - sensor | |
| Measuring range | 45 x 45 mm |
| Distance A * | 260 mm |
| Distance B ** | 296 mm |
| Resolution | 0.175 mm/pixel |
| Cycle time | 8.3 ms |
| Web speed | Max. 100 m/min (120 fps) |
| Operating voltage | 24 V DC |
| Current consumption | 2 A |
| Installation altitude | Max. 2000 m above sea level |
| Ambient temperature | 0°C to +60°C |
| Storage temperature | -25°C to +90°C |
| Humidity | 15 to 95% (non-condensing) |
| Protection class | IP 54 |
| Weight | 1.90 kg |
| Dimensions (L x W x H) | 198 x 135 x 171 mm |
| * Distance between sensor holder and web | |
| ** Distance between sensor housing and web |
| Technical data - light transmitter | |
| Operating voltage | 24 V DC |
| Current consumption | 2 A |
| Dimensions | 160 x 90 x 25 mm |
