System information


Two or three point-type laser sensors – depending on the required accuracy – traverse the resting product (tread, side wall, inner liner, cord) and measure its external geometry.

Area of use

In the DIE shop, profile measurement is used for DIE documentation (optional DIE measurement), while profile measurement is used in test laboratories and in extrusion lines for quality assurance and documentation purposes.


The profile measurement system is used in DIE shops, test laboratories or directly in extrusion lines in a temperature-controlled measuring cabin.



AB = Operating width | M = Measuring range | 1 = Measuring table | 2 = Profile measurement | 3 = Point laser | 4 = CCD sensor | 5 = Tread | 6 = Side wall | 7 = Inner liner | 8 = DIE | 9 = Apex strip | 10 = Traversing device | 11 =Laser positioning aid

Offline profile measurement system

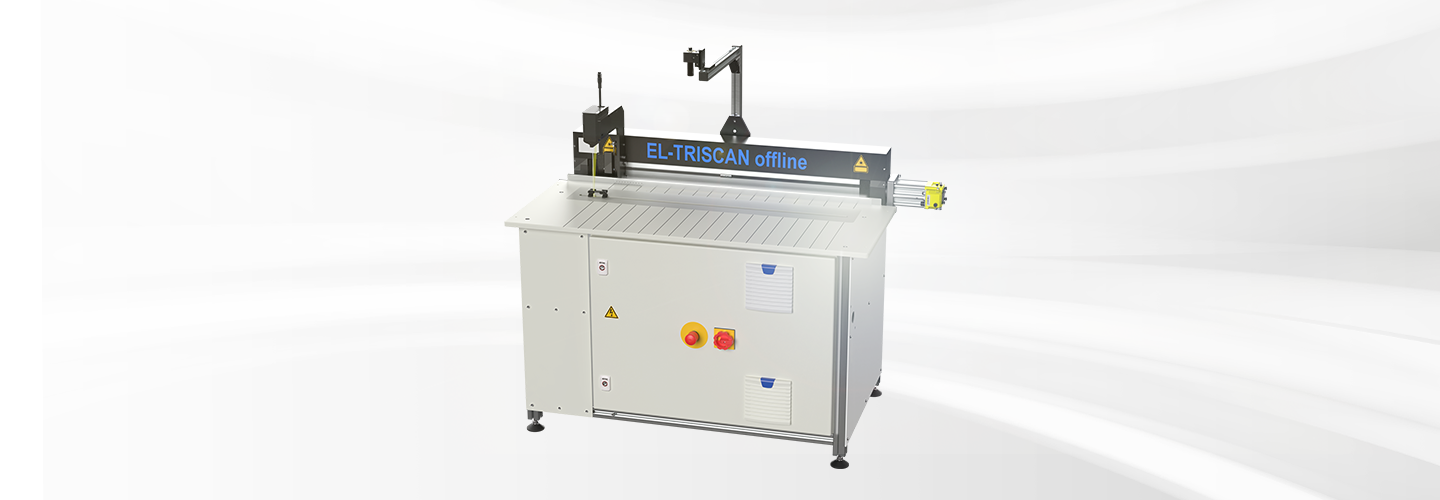

Offline profile measurement EL-TRISCAN NOS20

Offline profile measurement of treads, side walls, and inner liners
