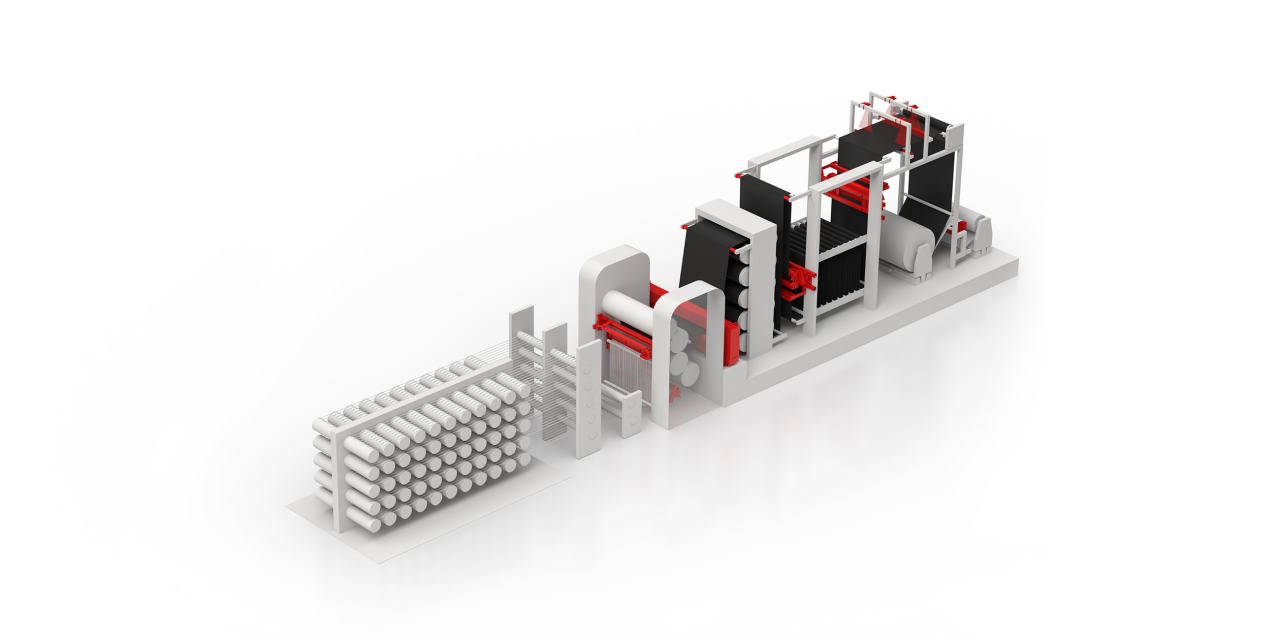

Information about the steel cord calender line

On calender lines, steel wires are fed into a calender that coats them with several layers of rubber. In this way, an endless cord-rubber web is produced. E+L supplies all the components to keep the webs produced in position, to cut them, to laminate them with other materials and to measure their thickness. In this way, the highest quality demands are met.

Systems and products for steel cord calender lines

Steering roller system with 2 rollers SRB63

Compact steering roller system with two rollers for S-wrapping and a maximum web tension of 5,000 N

More info

Steering roller system with 3 rollers SRB63

Compact steering roller system with three rollers for omega wrapping and a maximum web tension of 20,000 N

More info

More info

Winding station system WSB91/93

Control components for winding stations with wear-free, brushless drive technology with an actuating force of 1,000 or 3,000 N

More info

EPI

Flexible control and inspection

More info

Thickness measurement O-frame ND1

Contactless online thickness measurement for rubber webs

More info

Thickness measurement C-frame ND2

Contactless online thickness measurement for rubber webs with 1 to 3 measuring points and manual or motorized sensor positioning

More info

Thickness measurement against measuring roller ND3

Contactless online thickness measurement for rubber webs with 1 to 5 measuring points and manual or motorized sensor positioning

More info

Thickness measurement, calender roller ND4

Contactless thickness measurement system with point laser triangulation and eddy current sensor

More info

Flange load cell, steel PD 21

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info

Measuring amplifier with display PA 62

Digital two-channel measuring amplifier for connection of 2 fabric tension sensors with a strain gauge bridge

More info

Digital web tension controller DC 62

Compact, digital web tension controller for different control structures including color touch-display

More info

Analog measuring amplifier CV 22

Single-channel measuring amplifier for connecting two fabric tension sensors to a strain gauge bridge

More info

CCD camera OL 82

Interruption-free detection of web edges, position detection, web guiding, material detection, and width measurement

More info

CCD camera OL 91

Used to detect various criteria for position control on moving webs with complete image processing within the camera

More info

Triangulation sensor SL 23

Intelligent triangulation sensor with dual matrix camera and integrated laser light

More info

Flange load cell, steel PD 21

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info
