System information

Function

The contactless web cleaning system contains two scanning heads for dedusting of the top and bottom sides of the corrugated cardboard web. Additional discharging electrodes release statically adhering dust particles.

Area of use

Use in corrugated cardboard systems for dedusting on the top and bottom sides. This allows the delivery of dust-free sheets for further processing.

Application

The web cleaning system is employed after the automatic slitter scorer in the corrugated cardboard system. The corrugated cardboard web must be run flat and may not vary in height. The top scanning head is automatically adjusted to the desired corrugated cardboard thickness.

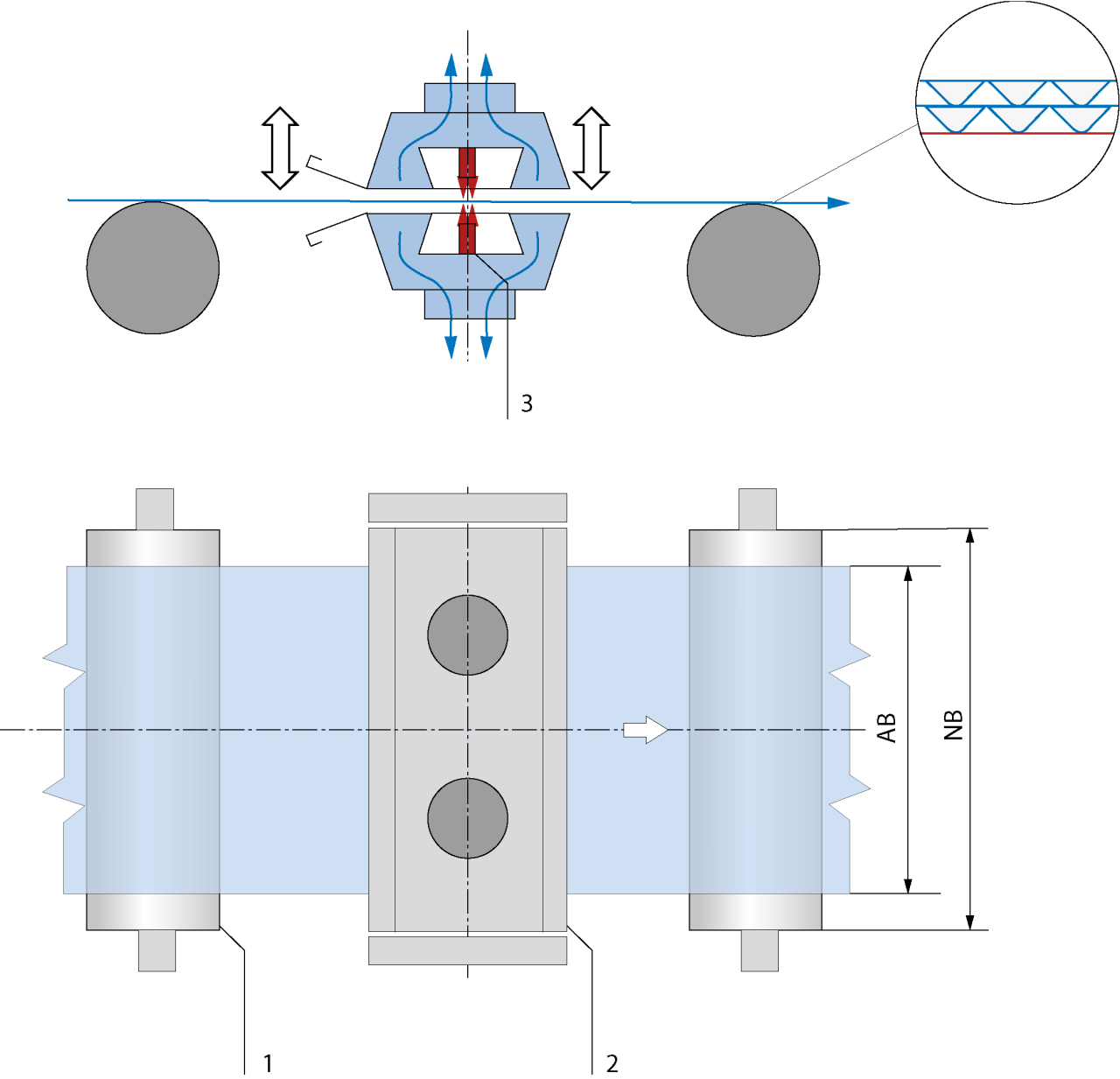

Legend

1=Guide roller | 2=Contactless web cleaning | 3=Discharge electrodes | AB=Operating width | NB=Nominal width

Web cleaning

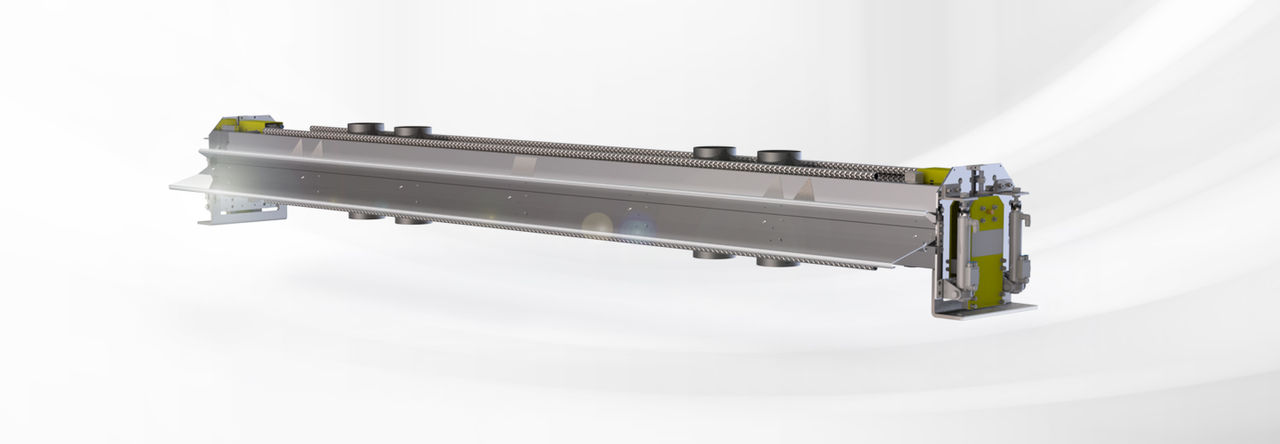

Web cleaning system ELClean WCD

Contactless web cleaning system for corrugated cardboard production
