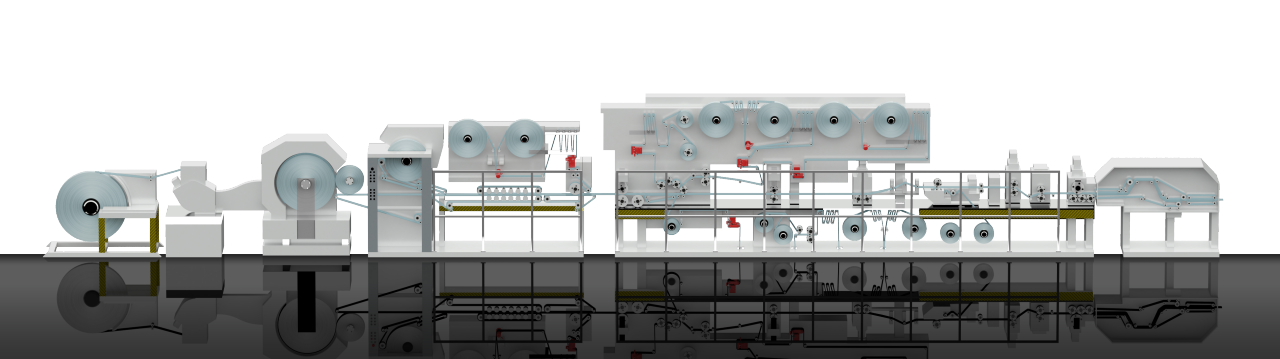

Information about the baby diaper machine

Consumer requirements for baby diapers are high. Parents expect perfect quality. This quality can only be ensured by accurately bringing together the different material webs. In turn, this aspect requires perfectly matched web guiding systems. For many years now, systems and components from Erhardt+Leimer have proven their worth in web guiding and web tension control and contributed to fulfilling the high expectations of consumers. The full networking capabilities of the systems also guarantee a quick, effective format change.

Systems and products for baby diaper machines

Flange load cell, steel PD 21/22

High flexibility thanks to different shaft diameters ranging from 12 to 65 mm and nominal measuring forces ranging from 0.05 to 10 kN

More info

Sensor roller PD 40

Aluminum roller with two integrated load cells and a roller diameter from 60 to 120 mm

More info

Flange load cell for for rollers with bearings on one end PD 27

Flange load cell with a nominal measuring force of 60 N for mounting on rollers with bearings on one end

More info

Web guiding system ELGUIDER DRB14

Extremely compact web guiding system with brushless drive technology including integrated operating and control technology for a nominal width of 160 to 450 mm and a maximum web tension of 300 N

More info
