Function

Sophisticated image processing, combined with two high-resolution cameras – this is what the ELSCAN web monitoring systems offer. They allow the display of printed images on moving webs with the greatest detail and color fidelity. The cameras can be moved manually or by a motor to adopt positions with the highest precision and display the corresponding images on the monitor.

All ELSCAN variants feature the patented "dualView" technology with its two cameras. Depending on the zoom level, either the telephoto camera or the wide-angle camera is activated. During zooming, the system switches unnoticeably between the cameras. As a result, print images can be displayed at many times their original resolution. This unique, patented "dualView" concept allows nearly lag-free zooming up to the highest resolution.

Area of use

E+L web monitoring systems are primarily used on the following production systems: Label printing machines, offset printing machines, flexo printing machines, gravure printing machines, digital printing machines, rewinding machines, corrugated cardboard plants.

Web monitoring systems

Web monitoring system ELSCAN OMS3

Web monitoring system for narrow web applications up to a web width of 580 mm

More info

Web monitoring system ELSCAN OMS4.6

Web monitoring system for use in the printing industry for operating widths up to 2,370 mm

More info

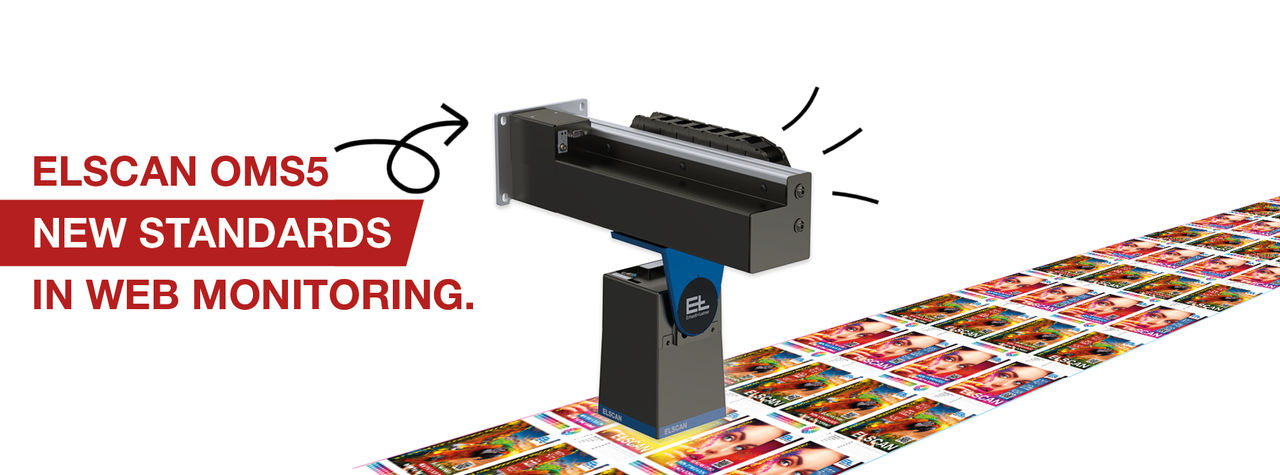

Web monitoring system ELSCAN OMS5

Web monitoring system ELSCAN OMS5

More info

Web monitoring system ELSCAN OMS6

Web monitoring system for use in the printing industry at operating widths of up to 3,600 mm

More info
