Machine information

Product information
  • Tube slitting system to cut open circular knitted fabrics
  • Optionally with crimper for skein dehydration
  • Optionally with rotary disc for additional untwisting
  • With skein untwisting head to unwind the textile tubular fabrics
  • Tube slitting system with drop stitch sensor for safe separation after a drop stitch
  • Segmented roller guider system with wide band sensor for web guiding by the web center
  • With upstream spreading system for safe spreading of the curled edges
  • Optionally with two foulards for "wet-in-wet" application of a dressing
  • Optionally with plaiter, linear plaiter or rewinder
  • Implementation of customer-related solutions possible
Function

Tube slitting system for untwisting and slitting open tubular knitted fabrics. The drop stitch is automatically detected by the tube slitting system and cut open according to the reference line. Then, the slit web is spread out and guided to the web center using a segmented roller guider system. A further spreading roller system directly in front of the traction unit prevents the web edges from rolling in again. The web is plaited into a stack for further processing.

Area of use

In the textiles industry for the production of knitted fabrics

Application

Independent machine in the textile industry

Other machine components

Tube slitting system ELCUT BTA25

Drop stitch matrix sensor detects the drop stitch using the transmitted light principle

More info

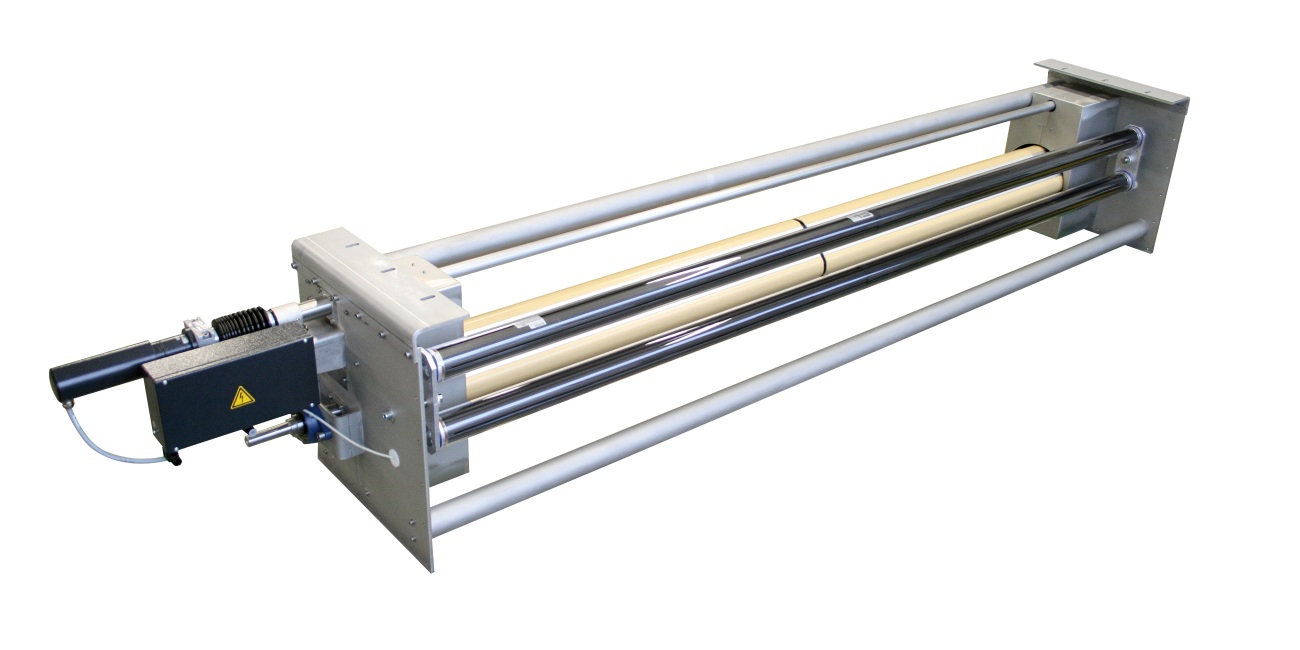

Segmented roller guider system ELSMART SWS96

Web guiding in stainless steel design for woven and knitted fabrics in wet and dry operation at a machine speed of up to 100 m/min with electric actuating drive

More info

Double squeezer

Double squeezer for "wet-in-wet" process

More info

Spreading squeezer

Spreading squeezer in stainless steel design for water removal

More info

Rope squeezer

Rope squeezer for removal of water from circular knitted fabrics

More info

Pre-cleaning system

Pre-cleaning system for separation of cotton fibers produced as a result of an enzymatic finishing process

More info

Rotary table

Rotary table for untwisting knitted or woven fabric in conjunction with the rope detwisting system

More info
