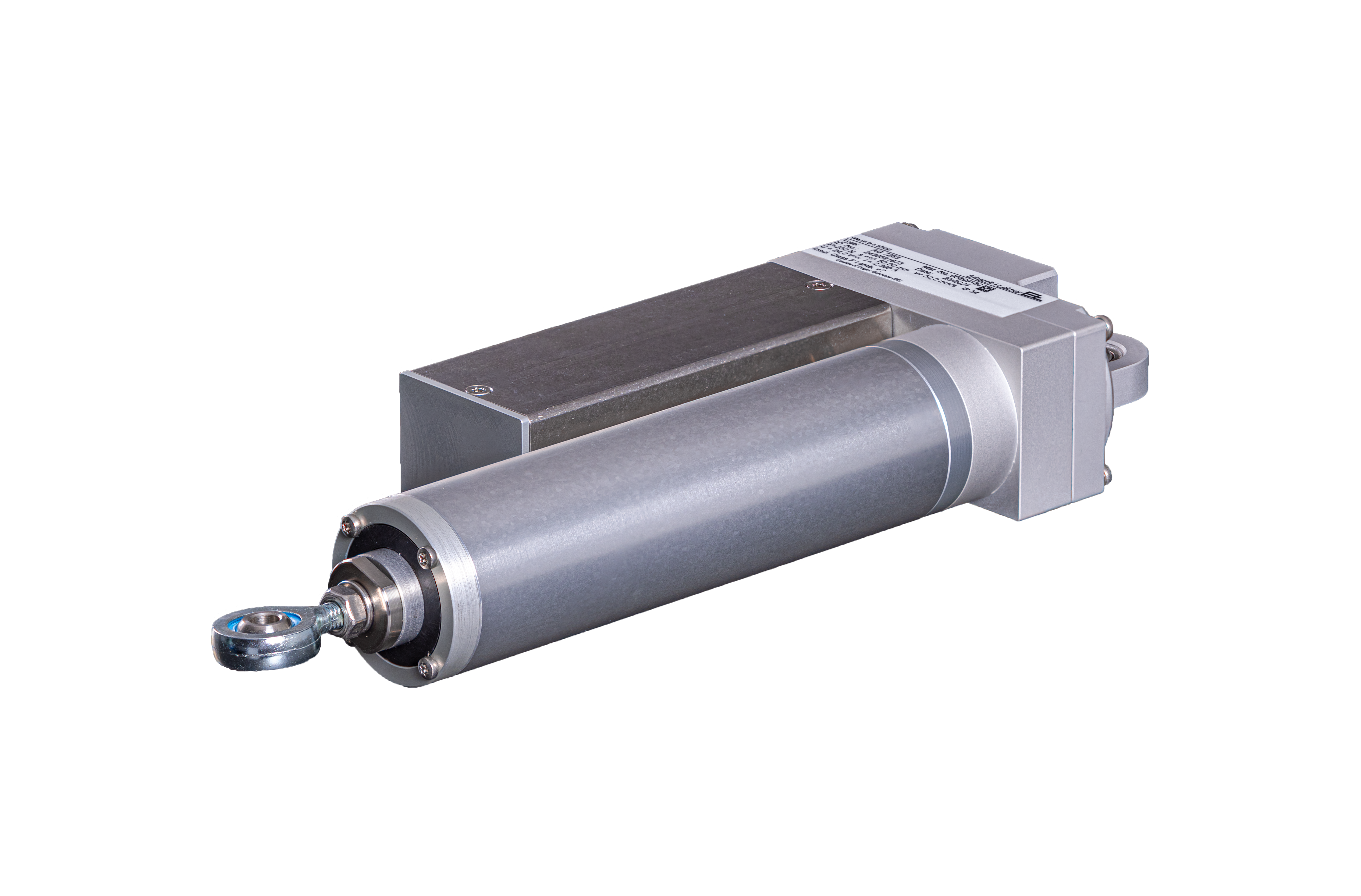

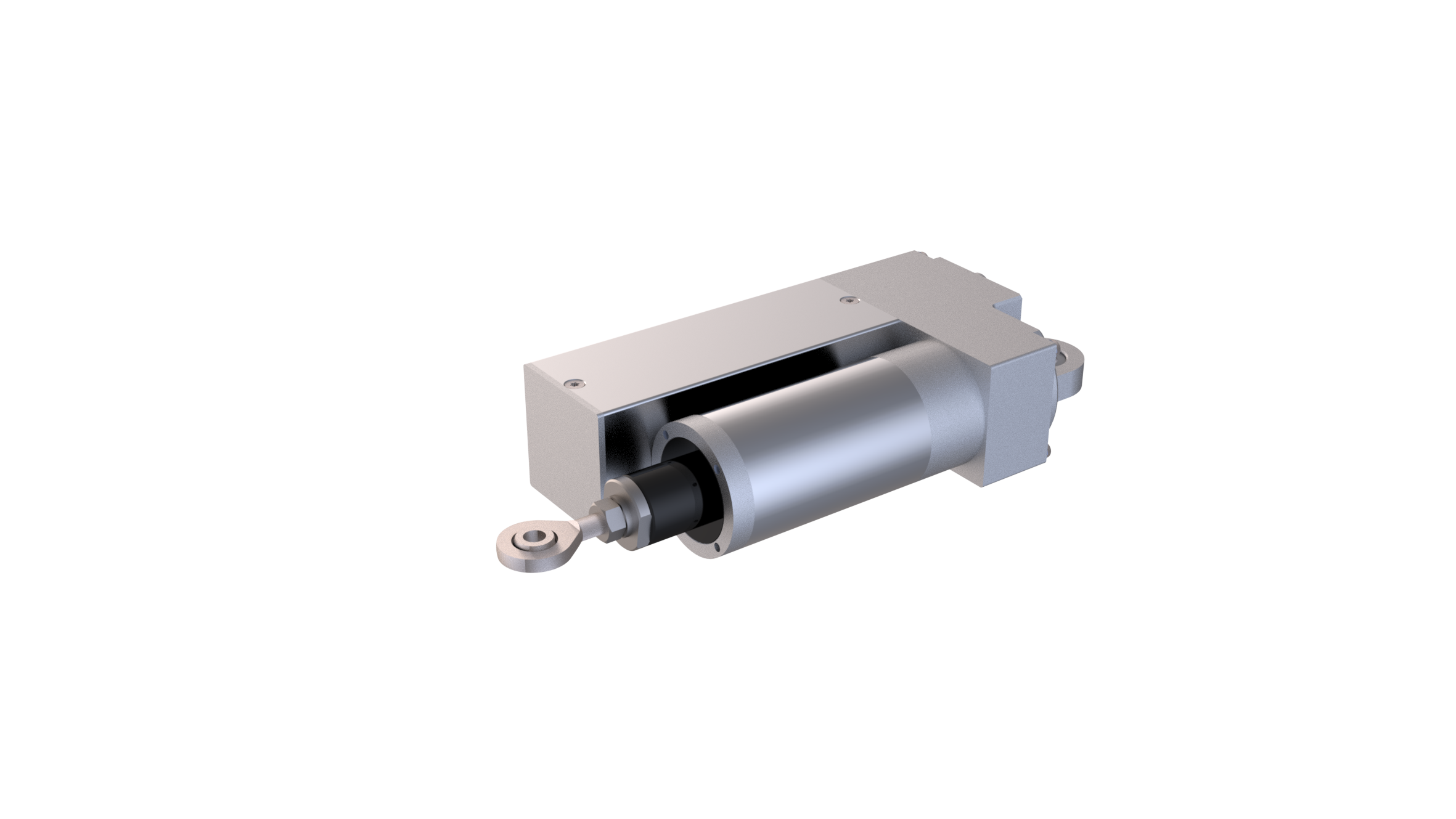

Linearer Stellantrieb AG 72

Produktinformation

Linear actuating drive with permanently excited synchronous machine (BLDC motor) in U-shaped design, particularly suitable for applications requiring very smooth running and a long service life
High-resolution multiturn encoder for determination of rotor position and absolute position
Absolute position detection, even after loss of voltage (without buffer battery)
Space-saving design thanks to integrated control electronics
High power density and overload capability
Integrated temperature monitoring
Simple configuration via web-based management with standard web browser

Positioning accuracy	0,05 mm
Nominal actuating travel	siehe Auswahltabelle
Nominal actuating speed	max. 60 mm/s
Nominal actuating force	250 N
Ambient temperature	+10 °C to +60 °C
Storage temperature	-20 °C to +80 °C
Relative humidity	15 to 95% (non-condensing)
Operating voltage	24 V DC
	M12 L-code, 5-pin
Current consumption	max. 2,5 A DC
Fieldbus interfaces	EtherNet UDP/IP; EtherNet/IP; Profinet; POWERLINK; M8 D-code, 4-pin
Certifications	Declaration of incorporation in accordance
	with Machinery Directive 2006/42/EC
	NRTL certificate CU
Protection class	IP 54
